Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Material housing
EV000154
-
Degree of protection (IP)
EV006419
-
Suitable for manual operation
TRUE
-
Potential free switch contact
TRUE
-
Regulation type splitrange
FALSE
-
Return at zero supply voltage
FALSE
-
Position reporting system
EV000494
-
Auxiliary contacts optional
FALSE
-
Adjustable operating range
TRUE
-
Automatic travel recognition
FALSE
-
Allowable relative humidity
-
Type of safety function
EV000154
-
Degree of protection (NEMA)
EV000069
-
Deactivated when closed
FALSE
-
Principle of operation safety function
EV000154
-
With top flange direct mount according to ISO 5211
FALSE
-
With mechanical setting indicator
TRUE
-
Auxiliary contacts
TRUE
-
Connection to stop valve
EV000494
-
Model
EV010029
-
With safety function
FALSE
-
Length of connection cable
1
-
Regulation type on/off
TRUE
-
Suitable for air accessory
TRUE
-
Max. angle of rotation
95
-
Suitable for valve
FALSE
-
Ambient temperature
-30
-
Operating time
150
-
Adjustable position feedback signal
FALSE
-
Regulation type modulating
FALSE
-
Supply voltage
EV021412
-
Width
114
-
Control signal
EV022125
-
Height
69
-
End contacts
EV000599
-
Torque
5
-
Max. electric power input
3.5
-
Energy consumption in operation
1.5

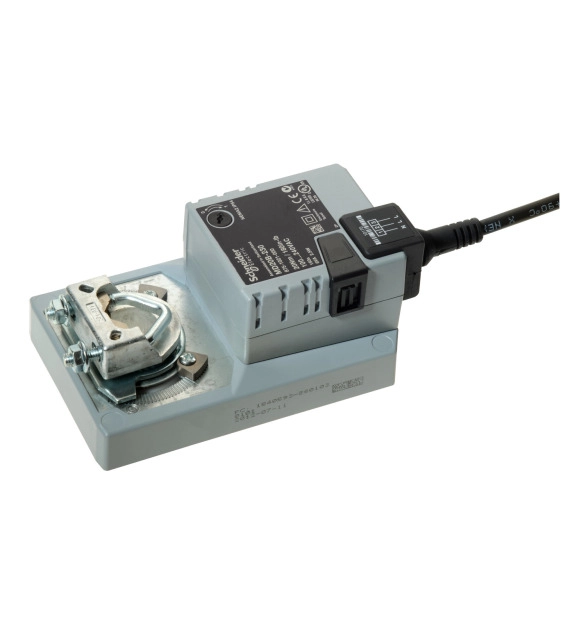

MD20B Damper Actuator, 2-Position, Non-Spring Return, 230 Vac, 1 m Cable, 20 Nm, IP54
Item number: 8751021000
