Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
System configuration TT
FALSE
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
Max. conductor cross section solid (solid, stranded)
35
-
Max. conductor cross section flexible (fine-strand)
35
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
With remote signalling contact
TRUE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
System configuration TN-C
FALSE
-
Max. discharge surge current (8/20)
40
-
Nominal discharge surge current (8/20)
15
-
Number of conductors (without earthing)
2
-
Construction size
EV007000
-
System configuration DC
TRUE
-
Nominal voltage DC
1000
-
Max. PV-voltage
1000
-
Voltage protection level L-N
3.9
-
Voltage protection level
3.9
-
Max. continuous voltage DC
1000
-
Voltage protection level N-PE
3.9

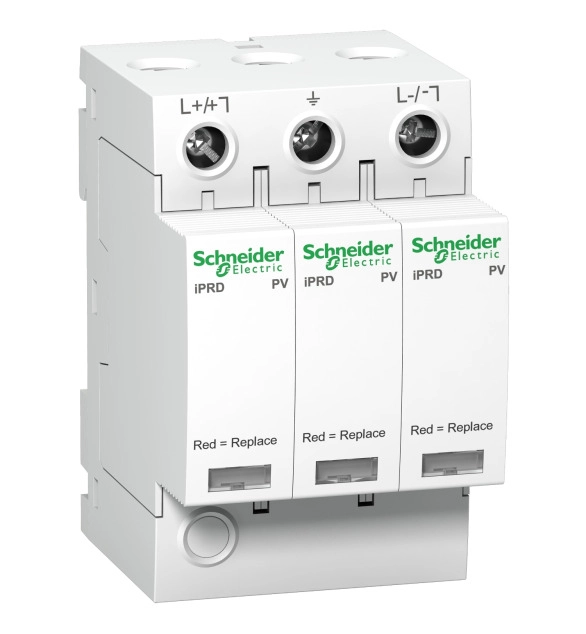

Катод. отводител IPRD 40R 1000PV 2P SURGE ARRESTER
Item number: A9L40281
