Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
Signalling at the device
EV000428
-
Nominal voltage AC
400
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
With remote signalling contact
TRUE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
System configuration TN-C
FALSE
-
System configuration TT
TRUE
-
Construction size
EV006974
-
System configuration TN-S
TRUE
-
Number of conductors (without earthing)
1
-
Max. discharge surge current (8/20)
40
-
Max. overcurrent protection device, series connection (fuse)
80
-
Voltage protection level N-PE
1.4
-
Short-circuit breaking capacity (Isccr)
50
-
Voltage protection level
1.4
-
Max. conductor cross section solid (solid, stranded)
25
-
Max. conductor cross section flexible (fine-strand)
16
-
Nominal discharge surge current (8/20)
15
-
Voltage protection level L-N
1.4
-
Max. overcurrent protection device, parallel connection (fuse)
63

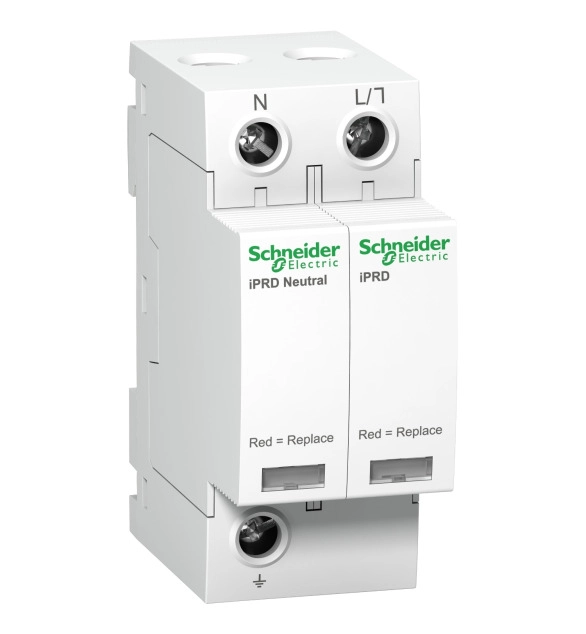

iPRD 40R 40 KA 340V 1P+ N с комуникация
Item number: A9L40501
