Марка
Schneider Electric
-
Type of electric connection
EV000415
-
Depth
72
-
Voltage type for actuating
EV000509
-
Height
90
-
Rated control supply voltage Us at AC 50HZ
12
-
Rated control supply voltage Us at AC 60HZ
12
-
Rated control supply voltage Us at DC
12
-
Suitable for front mounting
TRUE
-
Width
17.5
-
With semiconductor output
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Number of outputs, undelayed, change-over contact
1
-
Function pulse shaping
TRUE
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Outputs, reversible delayed/undelayed
FALSE
-
With plug-in socket
FALSE
-
Function star-delta
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Time range
0.1
-
Function delay-on energization
TRUE
-
Function delay on de-energization
TRUE
-
Clock function, starting with pause, variable
TRUE
-
Clock function, starting with pulse, variable
TRUE
-
Function floating contact on de-energization
TRUE
-
Number of outputs, delayed, change-over contact
1
-
Function floating contact on energization
TRUE
-
Nominal current
8
-
Function flashing, starting with pause, fixed time
TRUE
-
Function flashing, starting with pulse, fixed time
TRUE
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact

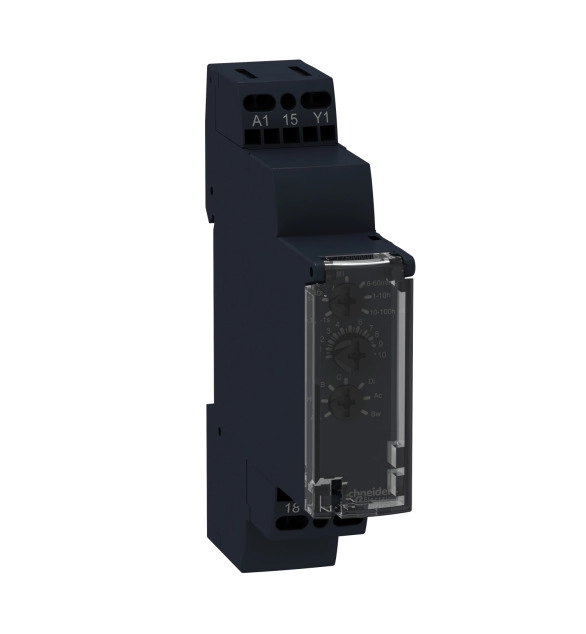

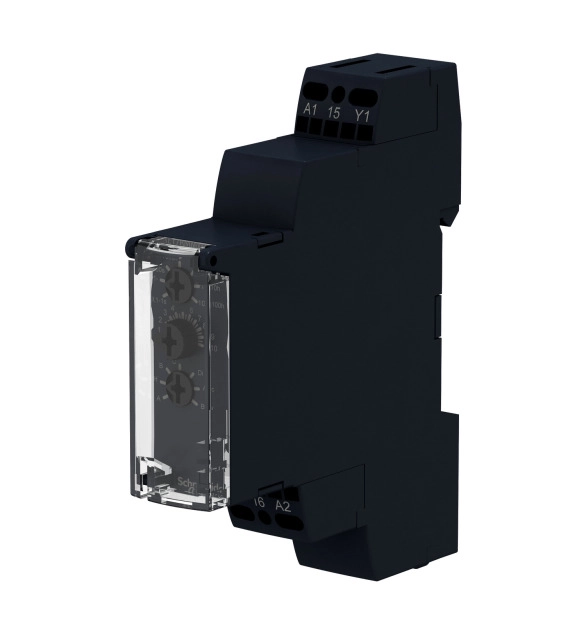

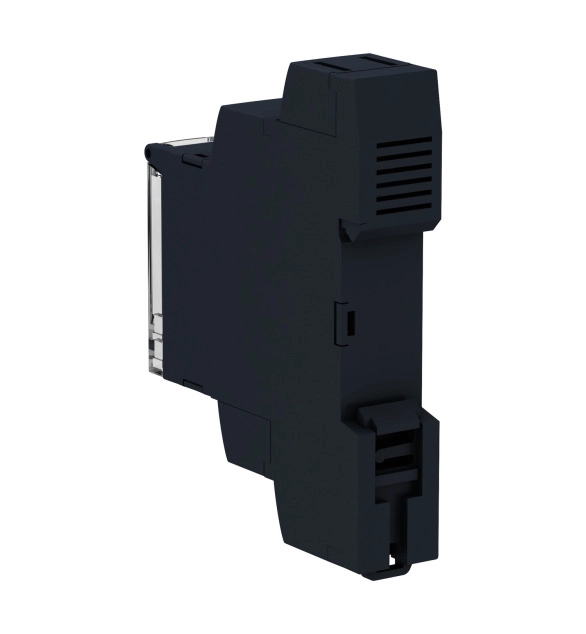

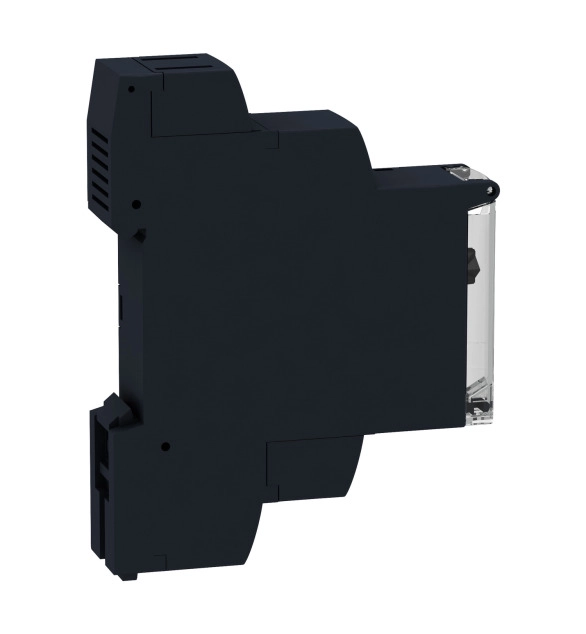

Мултифункционален таймер 10 X MULTIFUNC TIMER 1C O 12VAC DC
Номер на артикул: RE17RMJU
